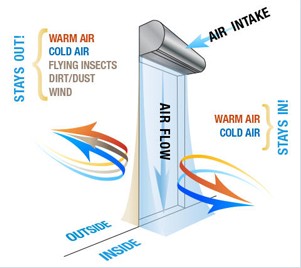

Air Curtain creates an invisible air barrier (curtain) between a room and its surrounding thus prevending the cool/hot air inside the room to escape outside ,thus maintaining the comfortable temprature in the building and also saving a lot on electricity that otherwise would have used on cooling & heating appliances to maintain that temprature. Air curtains are esentially used to prevent dust particles, insects & smoke to enter the clean & sensitive areas like hospitals, hotels, resturants, food packaging units etc. Today they are indispensible part in these sectors as higine & contamination is a big concern with growing epidemics.

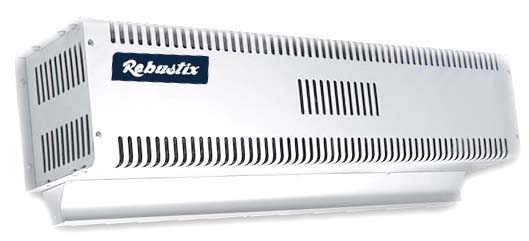

What makes Robustix Air Curtains so special ? At Robustix we understand the importance of an air curtain in your business and its significance of being up and runni ROBUSTIX Air Curtains are made 100% in India and is by far one of the few brands which Exports Hi End Professional Air Curtains around the world.
We provide hi end solution for difficult locations where 90% of brands give up. Whether you have an extra high ceiling height or an extra wide door - Don't worry we have a Air Curtain just for you - We will take care of it so that you can concentrate on your work.
Today we are one of the leading suppliers of various govt. departments, 5 Star Hotels, Hospitals, Dairy Units, Food packing Units, multinational companies, commercial houses & institutions.
|
ng 24 x 7, therefore we make sure that each & every individual unit is crafted for excellence to give trouble free operation for many years.
NORMAL VELOCITY (Suitable for Door Height upto 7 feets)
| Length of Unit | Breadth of Unit | Height of unit | No. of Motors & Blowers | Power | Air Speed Meter /Second | Noise | Price |
|---|---|---|---|---|---|---|---|
| 2.5ft | 8" | 11" | 1 Motor & 2Blowers | .33 HP (246 W) Single phase |
15 - 17 (M/S) | <70 Db | Rs.12,300 |
| 3ft | 8" | 11" | 1 Motor & 2Blowers | Rs.12,300 | |||
| 3.5ft | 8" | 11" | 1 Motor & 2Blowers | Rs.14,350 | |||
| 4ft | 8" | 11" | 1 Motor & 2Blowers | Rs.16,400 | |||
| 5ft | 8" | 11" | 2 Motor & 4Blowers | Rs.20,500 | |||
| 6ft | 8" | 11" | 2 Motor & 4Blowers | Rs.24,600 |
HIGH VELOCITY (Suitable for door height upto 8 feets)
| Length of Unit | Breadth of Unit | Height of unit | No. of Motors & Blowers | Power | Air Speed Meter /Second | Noise | Price |
|---|---|---|---|---|---|---|---|
| 2.5ft | 11" | 14" | 1 Motor & 2Blowers | .50 HP (373 W) Single phase |
20 - 22 (M/S) | <75 Db | Rs.13,800 |
| 3ft | 11" | 14" | 1 Motor & 2Blowers | Rs.13,800 | |||
| 3.5ft | 11" | 14" | 1 Motor & 2Blowers | Rs.16,100 | |||
| 4ft | 11" | 14" | 1 Motor & 2Blowers | Rs.18,400 | |||
| 5ft | 11" | 14" | 2 Motor & 4Blowers | Rs.23,000 | |||
| 6ft | 11" | 14" | 2 Motor & 4Blowers | Rs.27,600 |
EXTRA HIGH VELOCITY (Suitable for door height upto 10 feets)
| Length of Unit | Breadth of Unit | Height of unit | No. of Motors & Blowers | Power | Air Speed Meter /Second | Noise | Price |
|---|---|---|---|---|---|---|---|
| 2.5ft | 13" | 17" | 1 Motor & 2Blowers | 0.75 HP (550 W) Single phase |
23 - 25(M/S) | <80 Db | Rs.15,600 |
| 3ft | 13" | 17" | 1 Motor & 2Blowers | Rs.15,600 | |||
| 3.5ft | 13" | 17" | 1 Motor & 2Blowers | Rs.18,200 | |||
| 4ft | 13" | 17" | 1 Motor & 2Blowers | Rs.20,800 | |||
| 5ft | 13" | 17" | 2 Motor & 4Blowers | Rs.26,000 | |||
| 6ft | 13" | 17" | 2 Motor & 4Blowers | Rs.31,200 |
Super Extra High Velocity (Suitable for door height upto 12feets)
| Length of Unit | Breadth of Unit | Height of unit | No. of Motors & Blowers | Power | Air Speed Meter /Second | Noise | Price |
|---|---|---|---|---|---|---|---|
| 2.5ft | 15" | 18" | 1 Motor & 2Blowers | 1 HP (746 W) Single phase |
25 - 27(M/S) | <85 Db | Rs.17,100 |
| 3ft | 15" | 18" | 1 Motor & 2Blowers | Rs.17,100 | |||
| 3.5ft | 15" | 18" | 1 Motor & 2Blowers | Rs.19,950 | |||
| 4ft | 15" | 18" | 1 Motor & 2Blowers | Rs.22,800 | |||
| 5ft | 15" | 18" | 2 Motor & 4Blowers | Rs.28,500 | |||
| 6ft | 15" | 18" | 2 Motor & 4Blowers | Rs.34,200 |
Ultra Premium Range -HURRICANE
(Suitable for door height upto 16 - 18 feets)
| Length of Unit | Breadth of Unit | Height of unit | No. of Motors & Blowers | Power | Air Speed Meter /Second | Noise | Price |
|---|---|---|---|---|---|---|---|
| 2.5ft | 20" | 15" | 1 Motor & 2Blowers | 1.5 HP (1119 W) Three phase 1440 rpm |
26 - 28(M/S) | <90 Db | Rs.22,500 |
| 3ft | 20" | 15" | 1 Motor & 2Blowers | Rs.22,500 | |||
| 3.5ft | 20" | 15" | 1 Motor & 2Blowers | Rs.26,250 | |||
| 4ft | 20" | 15" | 1 Motor & 2Blowers | Rs.30,000 | |||
| 5ft | 20" | 15" | 2 Motor & 4Blowers | Rs.37,500 | |||
| 6ft | 20" | 15" | 2 Motor & 4Blowers | Rs.45,000 |
 |
 |
|
| SPECIFICATIONS, CLIENT & PRICE LIST |
Benefits of using an Robustix Air Curtains :
Energy savings via control of air transfer hence reduced expense in electricity bills
|
Increased comfort of staff and employees working in locations where doors cannot be installed. |
|
Reduce Product Reduction in product spoilage since the products can be easily transferred within rooms with no doors but not flies and germs. |
Climate Control Better climate control in the entire building due to managed air flow |
|
Reduction in Maintances Cost
|
Reduce Electricity Bills
Increased Comfort
Spoilage due to Contamination
Reduction in maintanence cost as with door or without door the dust particles are much lesser likely to enter the premisis installed with an air curtain.
4 easy steps to chose the right model of Air Curtain
Here is a quick selection guide for a Air Curtain to be effective it is really important to chose the right model of Air Curtain, Otherwise it will be just a fan installed on a ceiling. The best thing is that it is very easy!!
1. WIDTH OF THE DOOR First thing you need to messure is the width of the door or the passage where the Air Curtain needs to installed. It should cover the complete width of the door to be effective. |
 |
2. HEIGHT OF THE DOOR Secondly determine the height at which the Air curtian needs to be installed. As the height increases you would have to go for a model with more Air Velocity (Air Pressure) so that it forms a good air barrier / Wall. . |
3. LOCATION What is the type of application where the air curtain is required. If you are using it in food unit , hospital where hygine is your utmost concern then it is not a bad idea to for Air curtain with exact or even more air velocity than required. |
||
4. TEMPRATURE What are the ambient temperature conditions inside and outside the room |
||
If you have extra wide door of more than 10 feets

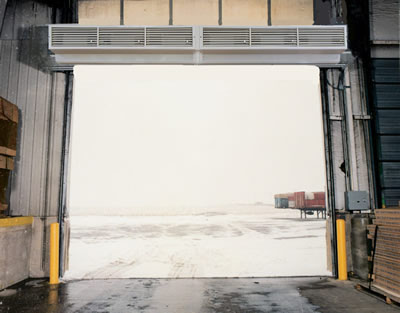

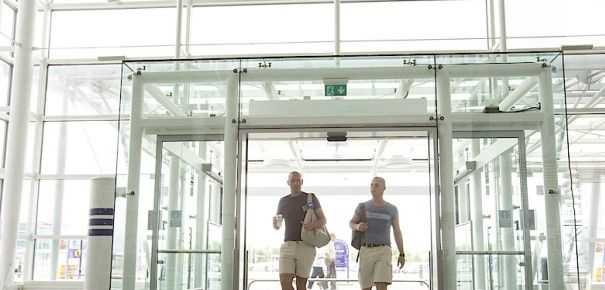

There are locations like Warehouse Doors , Main Entrance doors of Shopping malls / factories / Hospitals where there are Extra wide doors either for aesthetics reasons or for easy movements of goods / vehicles the doors are very wide.
So if you have a door that is more than 10 feets wide you would have to install 2 Air curtains side by side of commercial series. Like if the door is 20 feet wide you can install 2 air curtains of 10feets,
In the given below example the width of the door of warehouse is 12 feets. Although we can take 1 air curtain of 10 feets and other of 2 feets but it makes more sence to take 2 equal air curtains of 6 feets and place them side by side.
If you have any trouble chosing the model you may contact us and we'll happy to assist you in the same.
 |
OPTIONAL ACCESSORIES:

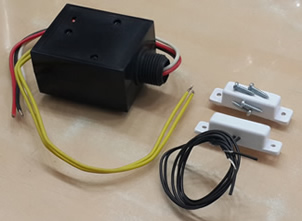

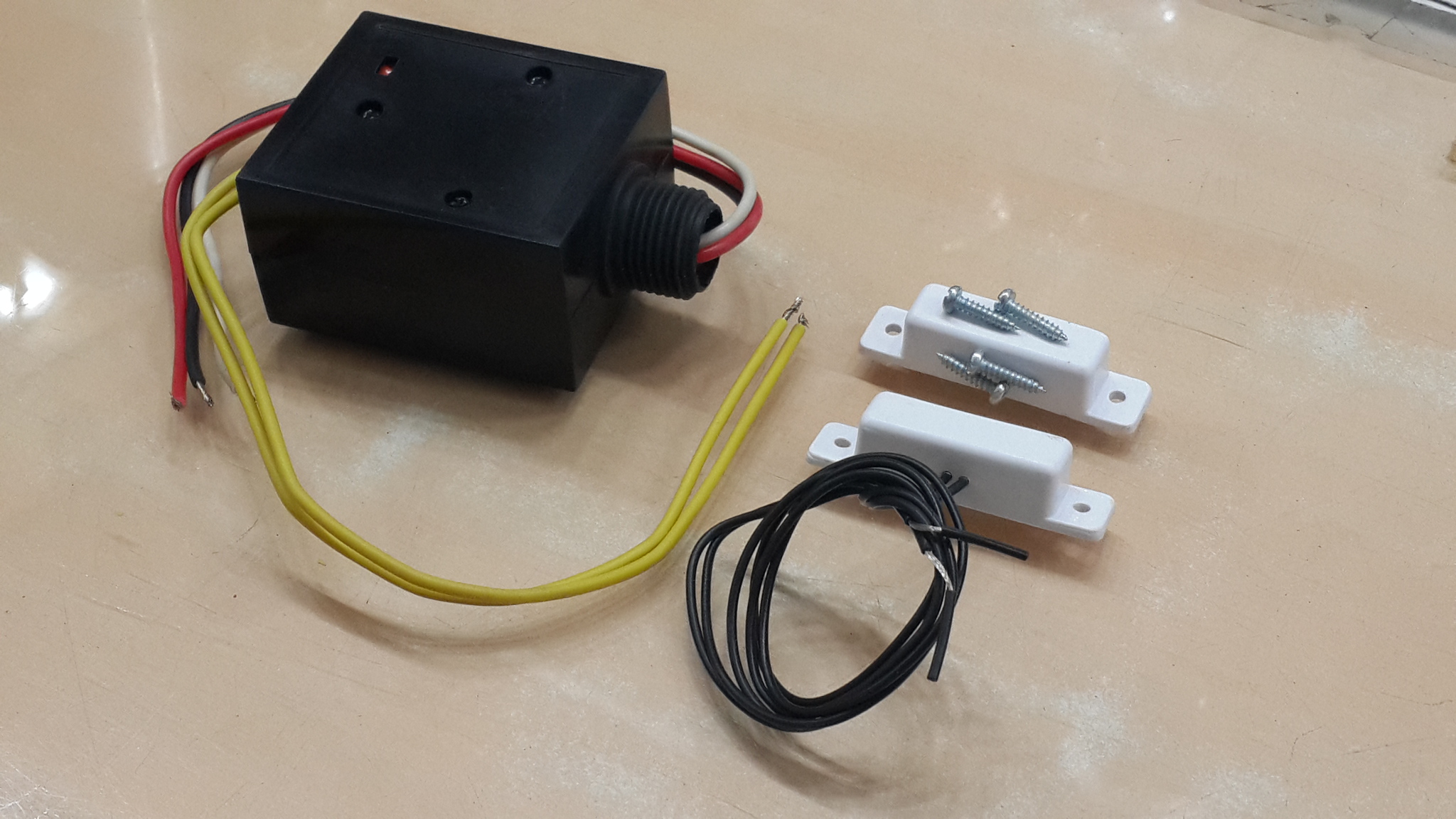

Automatic DOOR SENSOR : (To switch on the Air Curtain automatically when the Door opens).
Although we have made sure that you can leave our air curtains on 24 x 7 but if you don't have much foot fall or a heavy traffic you may install a automatic door sensor so that the air curtain only switches on when there's is need and then switches off itself.
One door sensor is enough per door. On Double doors (which open seperately) 2 door sensors should be installed the only exception being on doulbe sliding automatic doors which open together.
Price : Rs.1,980 (installation extra)
PHOTO SENSOR : (To switch on the Air Curtain automatically when someone approaches the door).
Two Photo door sensor should be installed per door no matter which type of door you have.
Incase of automatic sliding doors also two photo sensors need to installed.
(Existing photo sensors installed for sliding doors should never be used).
Price : Rs.9,800 / Set of 2 pcs (Installtion Extra)
Note: Air Velocity should be measured from top and not at the bottom, as air velocity will continue to decrese as you will go till the bottom of the floor.
Similarly the noise level of an air curtain should be checked few meters from air curtain.
 |
 SAFE SHIPPING |
 |
 |
| SPECIFICATIONS, CLIENT LIST & PRICE LIST | |
Note: Air Curtain's from Robustix / Avro will come in a plain brown box without any logo or AVRO / Robustix printed on it, Units might or might not have AVRO/Robustix Sticker on them. Delivery time for all air cutains is minimum 7 - 12 Days. Avro brand is NOT owned by us and we do not have any relation the principal company besides being its Authorized Resellers. All prices are of MS and Not S.S Models. Fitting charges will be extra. Freight extra. All prices are F.O.R Delhi. If purchase is to be made against C Form then the form must be submitted in advance or against equavalent security. Usually all air curtain supplied will be white color , if white color is not available then light grey color will be supplied, Kinldy inform in advance if you have any color choice otherwise which ever is available will be supplied. No warranty on sensors. Installation, Shipping, Sensor charges extra and not included in the cost of the Air curtain. By Default ROBUSTIX brand air curtain will be supplied until and unless mentioned in our quote or your purchase order. Air pressure mentioned in the table is at the top and not till the bottom on the floor. Best Air Curtain brand in India. For measurement of sound level the ambiance sound must be lesser than that.
